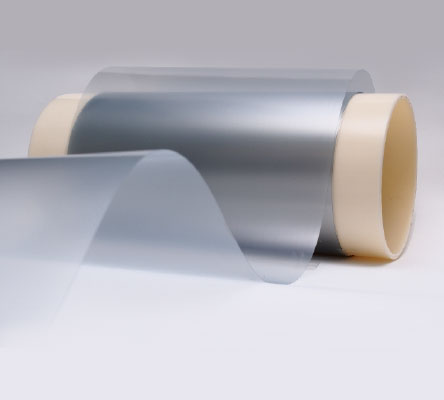

Transparent Conductive Film
Product description
Main features：
Property
- (1) Flexibility
- (2) Higher transmittance under the same PET structure
- (3) Low b* value
- (4) Excellent resistance uniformity
- (5) Good stability
- (6) Dry and wet etching process available
- (7) Resistance range from 100 to 1000 Ω/□
Specification
-
Structure
Hard coat layer/PET/conductive layer/protective film
Hard coat layer/PET/conductive layer/protective film
Hard coat layer/PET/conductive layer/protective film
-
PET Thickness (μm)
188/125
188/125
188/125
-
Transmittance (%)
> 85
> 86
> 88
-
Haze (%)
< 2
< 2
< 2
-
b*
< 1
< 1
< 1
-
L*
> 94
> 94
> 95
-
Sheet Resistance (Ω/□)
150±50
200±50
400±100
-
Uniformity (%)
< 105
< 10
< 10
-
Cross-Cut Test
100/100
100/100
100/100
-
Initial Test (150℃, 1 hr)
R/R0 < 1.25
R/R0 < 1.25
R/R0 < 1.25
-
High Temperature Test (80℃, 240 hr)
R/R0 < 1.25
R/R0 < 1.25
R/R0 < 1.25
-
High Humidity Test (65℃, 95%RH, 240 hr)
R/R0 < 1.25
R/R0 < 1.25
R/R0 < 1.25
-
Wiping Test (1000 gw, 50 cycles, Ethanol)
R/R0 < 1.25
R/R0 < 1.25
R/R0 < 1.25
-
Flexibility Test
The resistance do not change while rolling over 1000 times alone 2 mm diameter of a rod
The resistance do not change while rolling over 1000 times alone 2 mm diameter of a rod
The resistance do not change while rolling over 1000 times alone 2 mm diameter of a rod
Application
- (1) Touch sensor
- (2) e-Paper or e-Book
- (3) Smart film
- (4) Transparent film heater
- (5) Transparent flexible LED light/display
